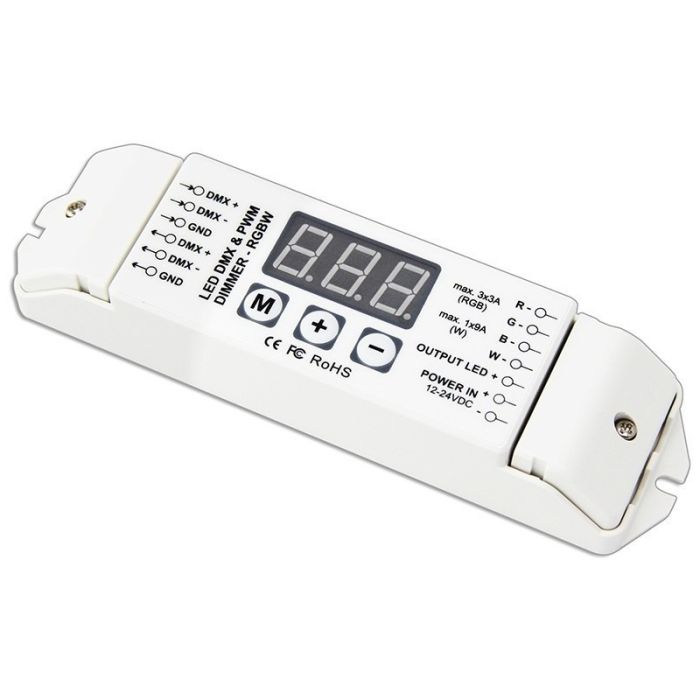

BC-834 Bincolor 12V-24V PWM CV DMX512/1990 Decoder Led Controller

Be the first to review this product

A$51.78

In stock

SKU

BC-834 Bincolor 12V-24V PWM CV DMX512/1990 Decoder

BC-834 Bincolor 12V-24V PWM CV DMX512/1990 Decoder Led Controller is durable and popular for LED Lighting decoration, For big order or customized items of LED Strip, LED Controller, LED Power Supply and Other LED items, Pls feel free to contact service@agodx.com

Agodx.com offer high quality products and excellent service, so a lot of customers become our loyal customers after they first buy. Quick Shipping with Tracking, Easy and Safe Payment via PayPal.

Feature function:

Automatically adapt input voltage DC12V-24V.

Input standard DMX512 signal; 3-digital-display shows DMX address code..

2(BC-832)/3(BC-833)/4(BC-834) channels output; 4096 grey scales each; logarithmic dimming; lamplight soft& stable without strobe flash.

DMX Master mode, Slave mode available.

4 (BC-832)/8 (BC-833)/8 (BC-834)color changing modes and 10 speed scales in master mode .

Indicator of the DMX512 signal receiving status.

Wrong wiring protection at DMX input port.Over current protection and short circuit protection.

Power loss memory function.

BC-834

Product Model:BC-834 4CH DMX512 decoder

Input voltage:DC12V-DC24V

Max load current:RGB: 3A×3CH W: 9A×1CH

Max Output Power:RGB:36W×3CH W:108W(12V) / RGB:72W×3CH W:216W(24V)

Grey Scale:4096 levels×4

Input Signal:DMX512/1990

Output Signal:Constant Voltage PWM×4

Decode Channel:4CH

DMX512 socket:Terminal Block

Dimension:L176×W46×H30(mm)

Weight (G.W):175g

Package Content:

1 Piece of BC-834 Bincolor Led Controller 12V-24V PWM CV DMX512/1990 Decoder

1 Piece of User's manual

Bincolor_Controller_BC_834_1
Bincolor_Controller_BC_834_2
Bincolor_Controller_BC_834_3
Bincolor_Controller_BC_834_4
Bincolor_Controller_BC_834_5
Bincolor_Controller_BC_834_6
Bincolor_Controller_BC_834_7
Bincolor_Controller_BC_834_8

CE and RoHS approved
