Specifications:
Model: 3CH Constant Voltage decoder
Input voltage: DC12V-DC24V
Max load current: 3CH×8A
Max Output Power: 288W(12V)/576W(24V)
Grey Scale: 4096 levels×3
Input Signal: DMX512/1990
Output Signal: Constant Voltage PWM
Decode Channel: 3CH
DMX512 socket: RJ45
Dimension: L111×W46×H66(mm)
Weight (G.W): 133g
Feature function:
Automatically adapts input voltage DC12V-24V.
Input standard DMX512 signal; 3-digital-display shows DMX address code.
3 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft & stable without strobe flash.
DMX Master mode, slave mode available.
Built-in 8 color changing modes and 10 speed scales.
Indicator of the DMX512 signal receiving status.
Power loss memory function.
Wrong wiring protection at DMX port,over current protection and short circuit protection.
The DIN rail style design facilitates the installation of large-scale projects.
Package Content:

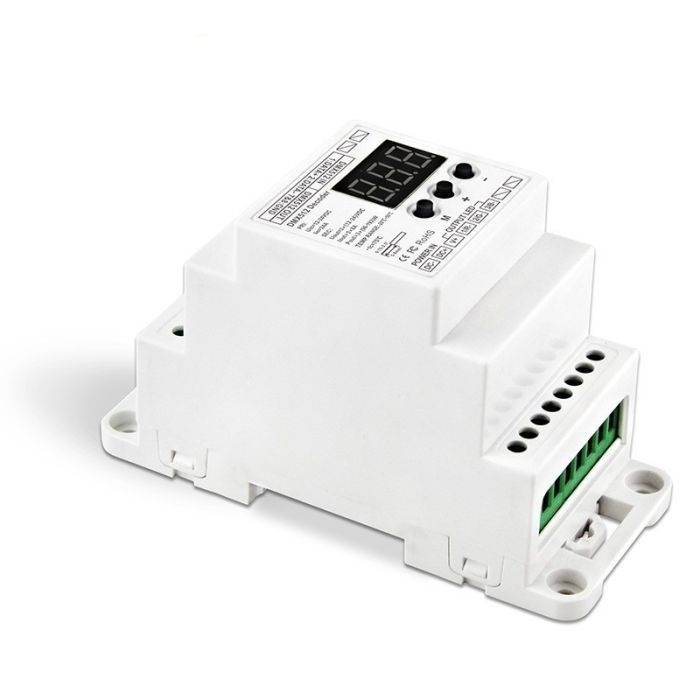

1 Piece of BC-833-DIN-RJ45 Bincolor Led Controller DIN Rail 3CH DMX512/1990 Decoder
1 Piece of User's manual
CE and RoHS approved
