Feature function:
Automatically adapt input voltage DC12V-24V(CV)
Input standard DMX512 signal; 3-digital-display shows DMX address code..
1 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft& stable without strobe flash.
DMX Master mode, Slave mode available.
30 changing modes and 10 speed scales in master mode .
Indicator of the DMX512 signal receiving status.
Power loss memory function.

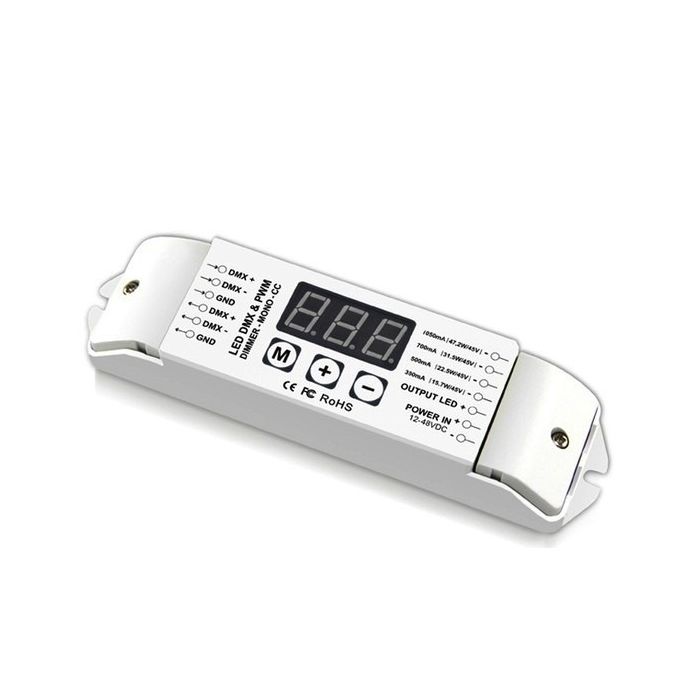

Product Model:BC-831-CC
Input voltage:DC12V-DC48V
Max load current plz choose:350mA or 500mA or 750mA or 1050mA
Max Output Power:13pcs 3W LED
Grey Scale:4096 levels×1
Input Signal: DMX512/1990
Output Signal:Constant Current PWM
Decode Channel: 1CH
DMX512 socket:Terminal Block
Dimension : L176×W46×H30(mm)
Weight (G.W):168g
Package Content:
1 Piece of BC-831-CC Bincolor Led Controller DMX512 Decoder Dimmer Driver
1 Piece of User's manual
CE and RoHS approved
Processing & Shipping & Tracking
Mostly the parcel will be shipped within around 1 to 2 business days after payment is received. If you need the items urgently, Pls do contact us for the delivery date right after or before you placed orders. service@agodx.com
Our website is very easy to use, the shipping fee base on the weight of the products. You would easily choose the Shipping Method (UPS/DHL/Fedex/Economic shipping) when you check out, We will always offer the Online Tracking Number to you via Email.
All the products will be packed well for every order, to make sure you will quickly receive all the products at great condition. We weekly supply hundreds of parcels to worldwide with tracking number.
