Feature function:
Automatically adapt input voltage DC12V-24V(CV)
Input standard DMX512 signal; 3-digital-display shows DMX address code..
1 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft& stable without strobe flash.
DMX Master mode, Slave mode available.
30 changing modes and 10 speed scales in master mode .
Indicator of the DMX512 signal receiving status.
Power loss memory function.
BC-831

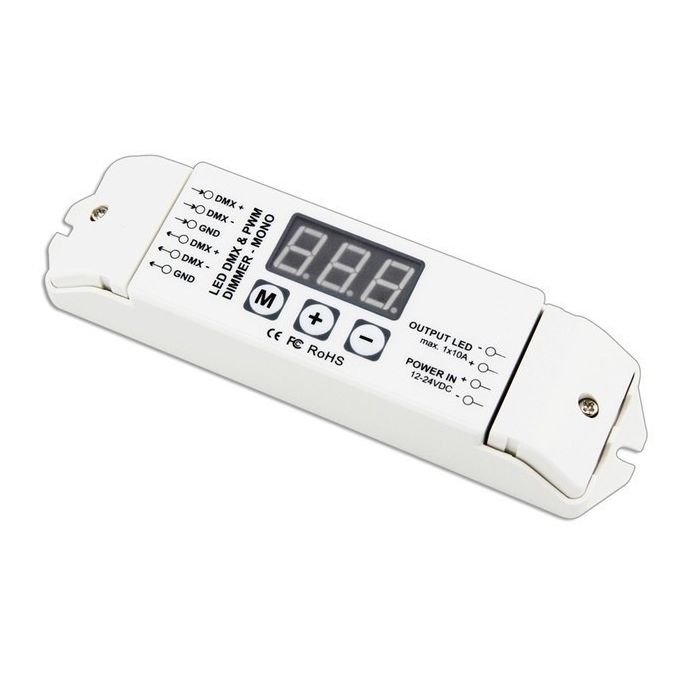

Product Model:BC-831 CV 1CH DMX512 decoder
Input voltage:DC12V-DC24V
Max load current:1CH×10A
Max Output Power:120W(12V)/240W(24V)
Grey Scale:4096 levels×1
Input Signal:DMX512/1990
Output Signal:Constant Voltage PWM
Decode Channel:1CH
DMX512 socket:Terminal Block
Dimension:L176×W46×H30(mm)
Weight (G.W):170g
Package Content:
1 Piece of BC-831 Bincolor Led Controller DMX512 Decoder PWM CC/CV Dimmer Driver
1 Piece of User's manual
CE and RoHS approved
