Feature function:
Input standard DMX512 protocol，Address can be set by DIP.
Automatically adapt input voltage DC5V-24V.
3 output channels, 256 scale each, RGB driving control.
10 self-changing modes, 8 speed levels.
Max output 5A*3CH.
Product parameter:
Product Model:BC-803
Input voltage:DC5V-24V
Max load current:5A/CH×3
Output Power:180W/360W(12V/24V)
Output Scale level:256 levels
Input signal:DMX512/1990
Output signal:3 constant voltage PWM
Output DMX Channel:3Chs or 4Chs (4th CH is shutter strobe)
DMX512 socket: Standard XLR-3R，RJ45 port
Product Dimension:L125×W52×H40(mm)
Package Size :L135×W70×H50(mm)
Weight (G.W) :320g
Package Content:

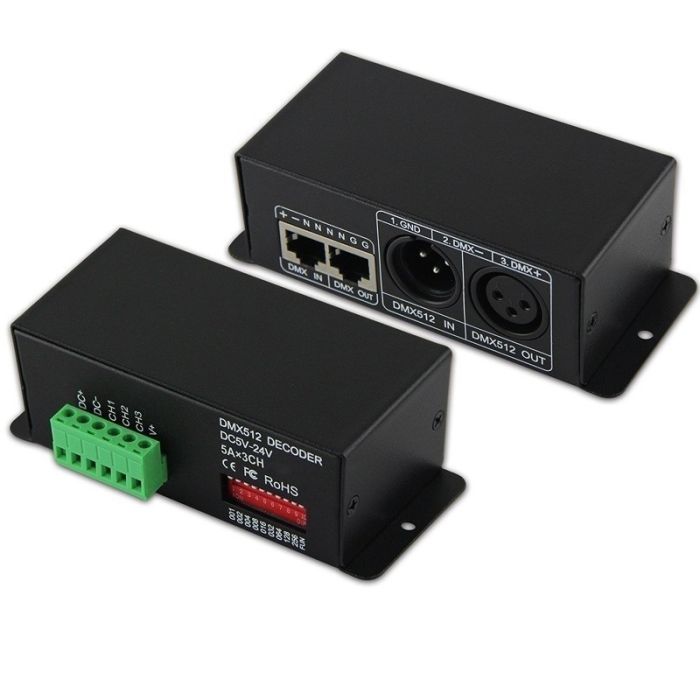

1 Piece of BC-803 RGB Bincolor Led Controller DMX512 3CH PWM DMX Decoder
1 Piece of User's manual
CE and RoHS approved
