Welcome to use the DIN Rail high Power DMX512 constant voltage decoder is specially developed for constant voltage LED lamps.
It adopts advanced microcomputer control technology to convert universal DMX512/1990 digital signal to PWM signal.40 output channels,
can be used to control constant voltage single color, color temperature, RGB type lamps. DIN Rail/screw dual-use installation method for easy installation.
Specifications:

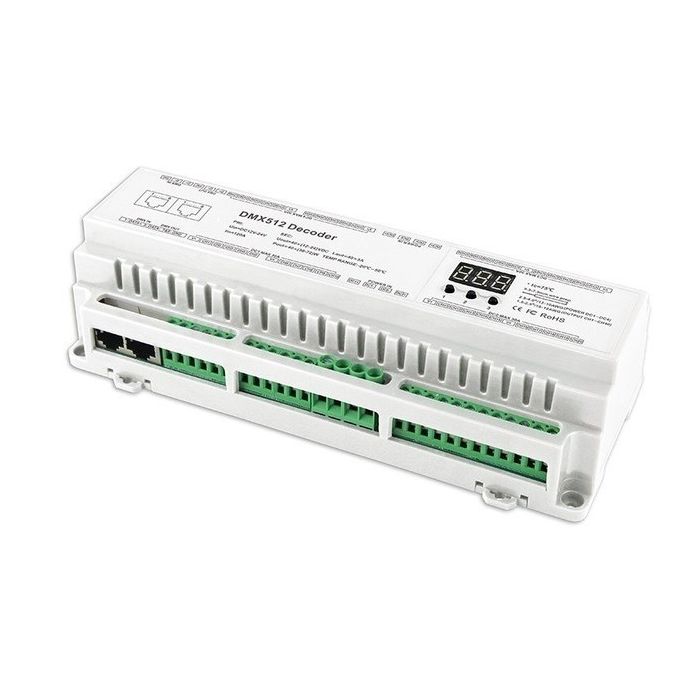

Model: 40CH Constant Voltage decoder(BC-640-DIN)
Input voltage: DC12V-DC24V
Max load current: 3A×40CH
Max Output Power: 1440W (12V) / 2880W(24V)
Input Signal: DMX512/8 bit/16 bit selectable
Output Signal: Constant Voltage PWM × 40CH
Decode Channel: 40CH
DMX512 socket: RJ45、Terminal Block
Dimension: L218×W90×H58.5(mm)
Weight (G.W): 372g
Package Content:
1 Piece of BC-640-DIN Bincolor Led Controller 40CH DMX512 Decoder Driver
1 Piece of User's manual
CE and RoHS approved
