Feature function:
Converts DALI signals into 0 to 10V analog signal, Automatically adapts input voltage DC12V-24V.
Work with any equipment which drives by DALI protocol in a bus control.
DALI signal optical isolation protection at input port.
BC-344-010V
Product Model:BC-344
Input voltage:DC12V-DC24V
Input Signal: DALI signal
Output Signal:0-10V analog signal×4CH
Dimension:L176×W46×H30(mm)
Weight (G.W):145g
BC-344-PWM5V
Product Model:BC-344-PWM5V
Input voltage:DC12V-DC24V
Input Signal:DALI signal
Output Signal:5V PWM×4CH
Dimension:L176×W46×H30(mm)
Weight (G.W):145g
BC-344-PWM10V
Product Model;BC-344-PWM10V
Input voltage;DC12V-DC24V
Input Signal:DALI signal
Output Signal:10V PWM×4CH
Dimension:L176×W46×H30(mm)
Weight (G.W):145g
Package Include:

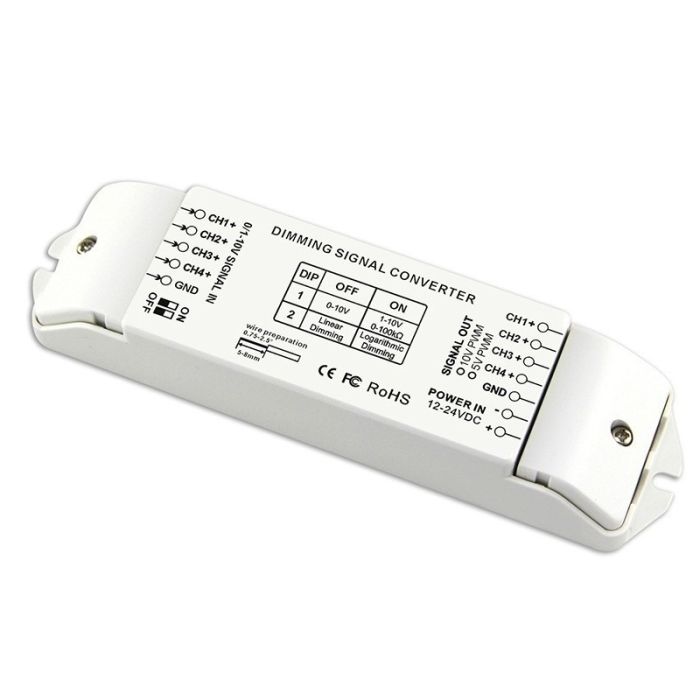

1 Piece of BC-344-PWM/BC-344-010V Bincolor Led Controller DALI Driver Signal Converter
CE and RoHS approved
