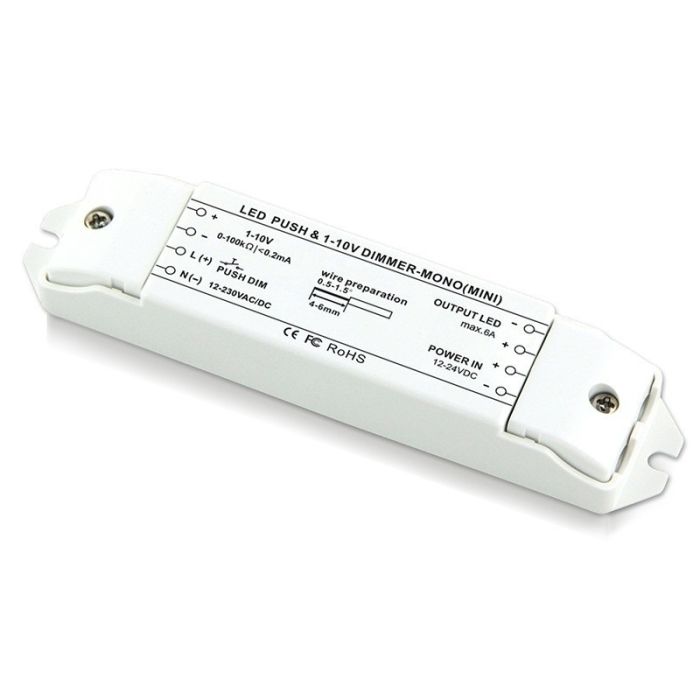

BC-331-6A 1-10V Dimming Driver
Feature function:
Working voltage from DC12V-DC24V.
1output channel, Max output 6A.
PUSH DIM input voltage AC/DC12V-230V.
1-10V to PWM dimming signal conversion.
Short circuit protection; over current protection.
Compatible with many brand dimming systems.
Multi units can be worked together or use our power repeaters to control more lamps. 8.Power loss memory function.
Product parameter:
Input Voltage:DC12V-DC24V
Max Current:6A×1CH
Input Signal:Potentiometer, active/passive 1-10V or PUSH DIM
Output Signal:Constant Voltage PWM
Max Output Power:72W(12V)/144W(24V)
Product Dimension:L135×W30×H20(mm)
Weight:48g
Package Include:
1 Piece of BC-331-6A Bincolor Led Controller Fluorescent Lamps Dimmer 0/1-10v
CE and RoHS approved
