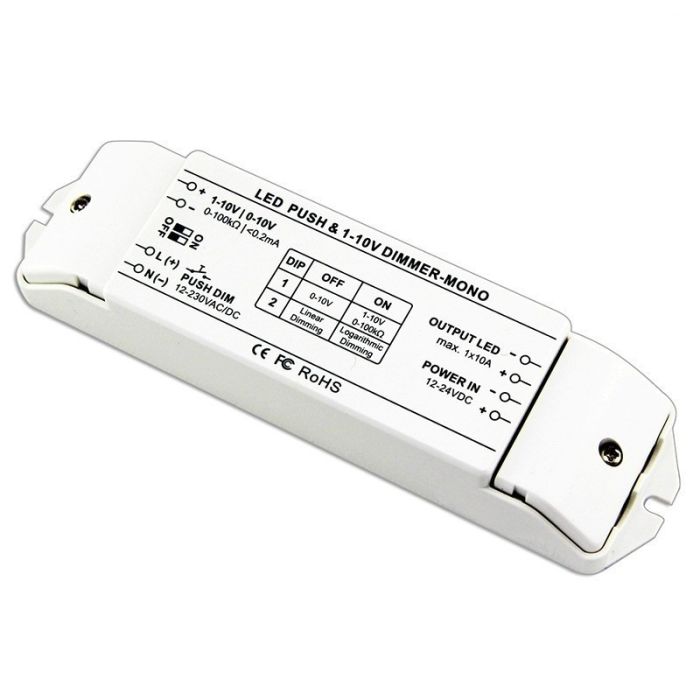

BC-331-10A CV 0/1-10V Dimming Driver
Feature function:
Working voltage from DC12V-DC24V.
1output channel, Max output 10A.
PUSH DIM input voltage AC/DC12V-230V.
0/1-10V to PWM dimming signal conversion, linear or log.
Support linear dimming or logarithmic dimming.
Short circuit protection; over current protection.
Compatible with many brand dimming systems.
Multi units can be worked together or use our power repeaters to control morelamps.
Power loss memory function.
Product parameter:
Product Model:BC-331-10A
Input Voltage:DC12V-24V
Max Current:10A/CH×1CH
Input Signal:0/1-10V or PUSH DIM
Output Signal:Constant Voltage PWM
Max Output Power:120W(12V)/240W(24V)
Product Dimension:L176×W46×H30(mm)
Package Dimension:L179×W49×H33(mm)
Product Weight:100g Bincolor Led Controller Fluorescent Lamps Dimmer 0/1-10V
Package Include:
1 Piece of BC-331-10A Bincolor Led Controller Fluorescent Lamps Dimmer 0/1-10V
CE and RoHS approved
