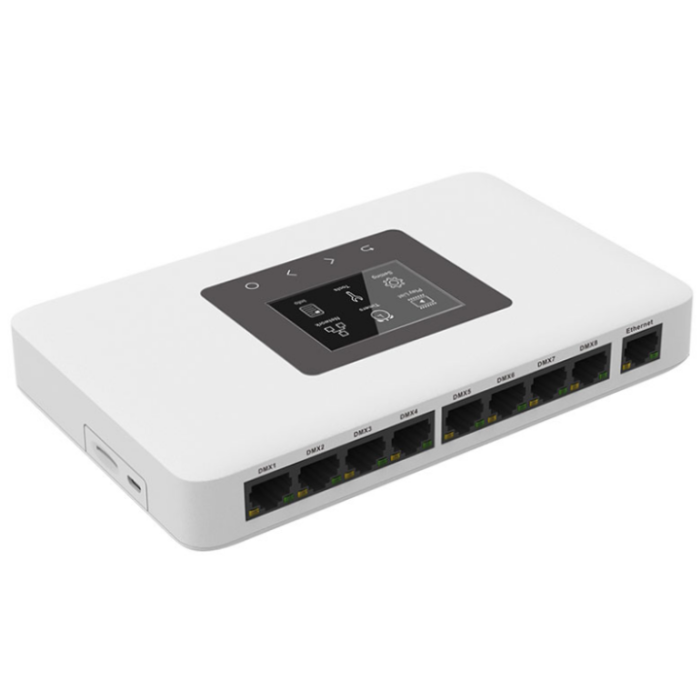

Artnet-DMX-8S Artnet-DMX Ltech Converter 5V DC 1A LED Controller is a high quality LED lighting control product. LTECH is a high-end manufacturer of LED Controllers and LED Dimmable Driver.
Agodx has a very good cooperation with LTECH, and supply LTECH products to USA, Europe,UK and other countries for many years.
Performance Features
Ethernet Control System based on the Artnet protocol.
Convert the Artnet network data package into DMX512 data.
Adopting high-speed ARM processor, stable and reliable.
Supports RJ45 network interface and DMX512 with RJ45 output interface.
With TFT 2.4" LCD screen and 4 touch keys, very easy for setting operation.
Update firmware via SD card or network.
Support program record.
Support offline playback.
Compatible with the light software based on Artnet Protocol.
Widely used in the LED dot matrix and the stage lighting control network in needing lots of DMX512 data.
Suitable for TV station recorded scene, stage performances, entertainment and so on.
Product parameter
Artnet-DMX-8S
Power input: 5Vdc, 1A (with a power adaptor)
Input signal: Artnet
Output signal: 8 universe
Network protocol: Artnet input/DMX output
SD card capability: 8G(support Max.16G)
DMX output connection: RJ45
Network connection: RJ45
Screen size: 2.4", TFT230+240
Isolation ethernet port: Total isolation
Isolation power input: Total isolation
working temperature: -30℃～55℃
Dimension: L185×W115×H29mm
Package Size: L192×W164×H36mm
Weight (G.W): 400g
Package Included:
1 Piece of Artnet-DMX-8S Artnet-DMX Ltech Converter 5V DC 1A LED Controller
1 Piece of User's Manual
CE and RoHS approved
