Specification:
LED source: WS2812B LED (5050 SMD RGB LED with built-in improved version of WS2811 IC)
LED Quantity: 30 LEDs/meter, 150LEDs/5Meter (1 Roll)
IC Quantity: 30 ICs/meter, 150ICs/5Meter (1 Roll) the ic is built-in the led, 1 IC drives 1 LED chip
Grey scale: 256 levels
Bits/color: 24-bit color control (8-bit PWM per channel); 16.8 million colors per pixel
LED wave lengths: 630nm/530nm/475nm

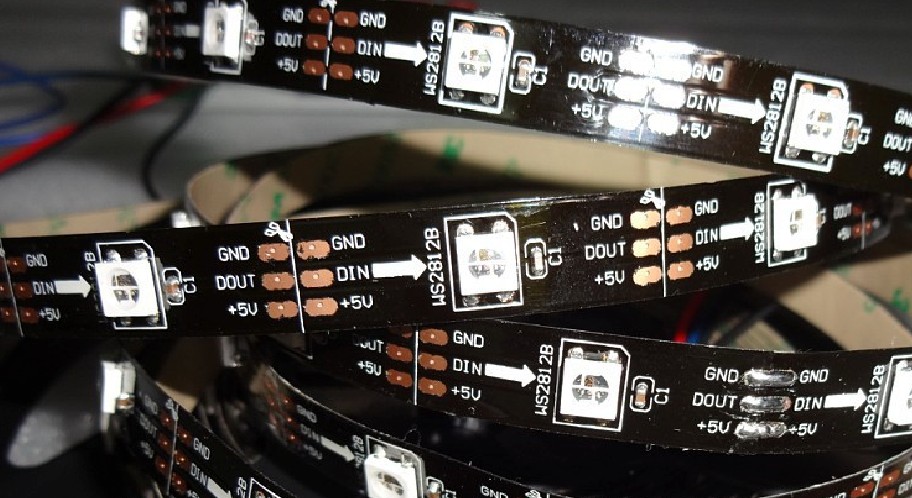

Cuttable: Strips can be cut apart along the lines between each RGB LED segment to separate them into usable shorter sections
Length: 5 meters (16.4Feet)
Working voltage: DC 5V
Power: 7.2 watt/meter, 36 watt/roll
FPC width: approx 10mm
FPC color: Pls Choose White or Black
Protection rate：Pls Choose Non-Waterproof with 3M Tape on the Back or Non-Waterproof with 3M Tape on the Back
This is very high end led strip, our strips are an easy way to add complex lighting effects to a project. Each LED has an integrated driver that allows you to control the
color and brightness of each LED independently. The combined LED/driver IC on these strips is the extremely compact WS2812B (essentially an improved WS2811 LED driver integrated directly into a 5050 RGB LED),
which enables higher LED densities.
Power/data connectors on both strip ends for easy chaining, and the input side includes an additional power and ground wire foralternate power connections
Package include:

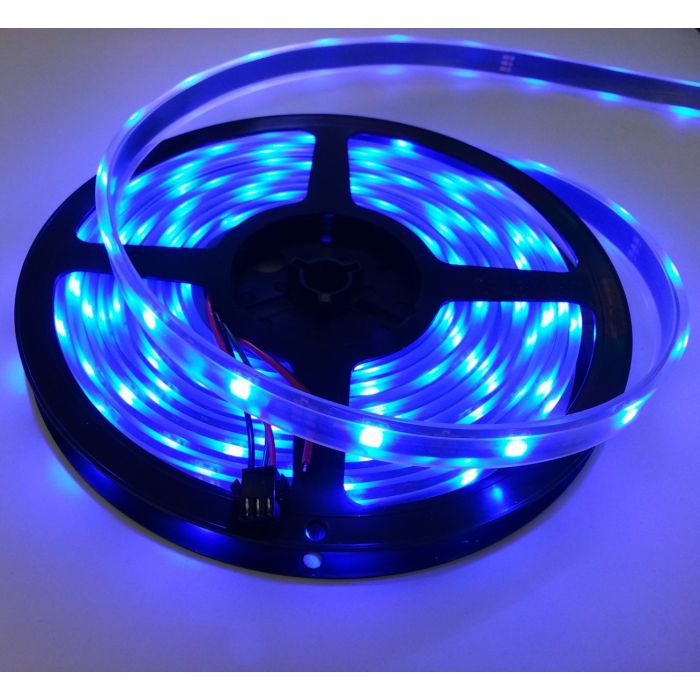

1 Roll of DC 5V WS-2812B RGB 5050 Intelligent LED Strip Lights 5M 150-LEDs
black PCB non-waterproof 5V WS2812B RGB LED light strip
CE and RoHS approved
