Our DC 5V LPD8806 LED strips are amazing and glowy, can display 2 million colors per pixel. There are 32 RGB LEDs per meter, and you can control each LED individually!
You can set the color of each LED’s red, green and blue component with 7-bit PWM precision (so 21-bit color per pixel). The LEDs are controlled by shift-registers that are
chained up down the strip so you can shorten or lengthen the strip. Only 2 digital output pins are required to send data down. The PWM is built into each chip so once you
set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you.
Built in 1.2 MHz high speed 7-bit PWM for each channel – that means it can do 21-bit color per LED (way more than the eye can easily discern). Once you set the brightness level
for the LEDs, your microcontroller can go off and do other things, no need to continuously update it, or clock it. The best part is that compared to the WS2801 which can only run
one LED at a time, this chip can drive 2 RGB LEDs which means the price stays the same as the older HL1606 strip, nice!
If you order the waterproof LPC8806 strip, the strip comes with a waterproof sheathing
You can cut this stuff pretty easily with wire cutters, there are cut-lines every 2.5″/6.2cm (2 LEDs each). Solder to the 0.1″ copper pads and you’re good to go. Of course,
you can also connect strips together to make them longer.
IC type: LPD8806
IC quantity: 16 ICs per meter, 5 meters length, total 80 ICs.
LED type: RGB SMD 5050 LED
LED quantity: 32 LEDs per meter, 5 meters length, total 160 LEDs.
Pixel quantity: 1 LED is 1 Pixel. 32 Pixel per meter, 5 meters length, total 160 Pixel.
Dimension: L5000 x W12 x T2.5 mm The width of the Non-Wateproof Strip's PCB is 12MM; The width of the waterproof strip's PCB is 14mm.
Working voltage: DC 5V
Viewing angle: 120 degrees
PCB color: Pls Choose,White,Black
Power consumption: approx 10 watts per meter, 5 meters length, total is approx 50W.
Grey level: 256 levels
Protection rate: Pls Choose
Non-Waterproof with 3M Tape on the Back,
IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back,
IP65 dripping glue waterproof (the minimum order quantity are 10 rolls 50 meters)
Package includes:

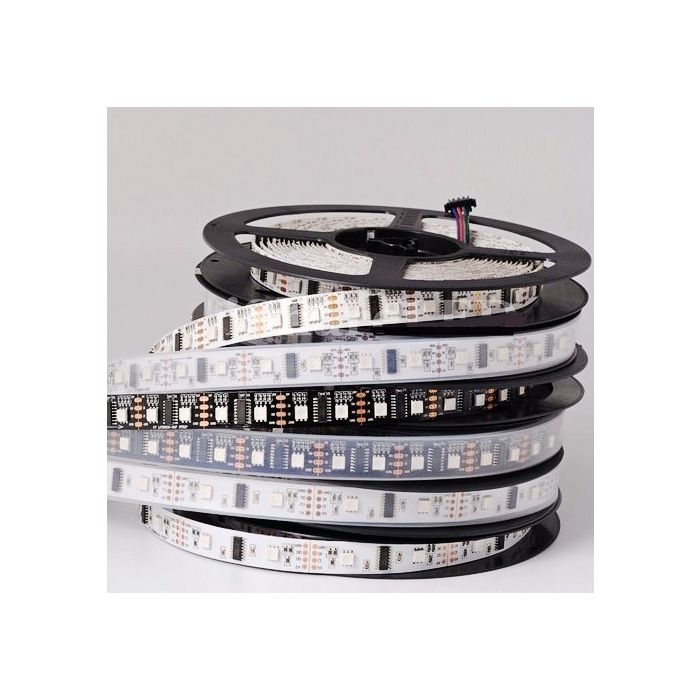

1 Roll of 5V LPD8806 16IC Per Meter 160Leds Programmable RGB LED Light Strip
CE and RoHS approved
