Using WS2801 RGB Strips, they would be capable of displaying lettering messages and all kinds of patterns as you design via SD Card Controller.
You would order SD Card Controller on our website too
This is very high end led strip, each LED is also independently addressable, opening up entirely new lighting possibilities. Each LED is powered by a WS2801 IC.
There are 32 LEDs per meter, and therefore a total of 32 'pixels' on the 1 meter strip you will receive. At full brightness the strip will require 1.8A of power,
so be sure you have an ample power supply. We also stock the power supplies, you would get them here.
This is some of the highest quality WS2801 LED lighting available. Constructed on an extremely high quality white flexible PCB. These LED strips speak a SPI protocol,
and can easily be driven by Arduino, PIC, and ARM microcontrollers!
The WS2801 employs a 2-wire serial data connection, similar to SPI or I2C. ICs are chained together which means whole strings can be controlled using just 2 pins on your microcontroller.
IC type: WS2801
IC quantity: 32 ICs per meter, 5 meters length, total 160 ICs.
LED type: RGB SMD 5050 LED
LED quantity: 32 LEDs per meter, 5 meters length, total 160 LEDs.
Pixel quantity: 1 LED is 1 Pixel. 32 Pixel per meter, 5 meters length, total 160 Pixel.
Cuttable: Strips can be cut every LED (1 IC, 1 LED per segment)
Working voltage: DC5V
Current: 1.8A
Protection rate: Non-Waterproof ,IP67 waterproof with silicon tube,IP65 dripping glue waterproof is available(Pls Choose)
Lumen per 1M/32LED: R29/G81/B27 lm
Power(W/M): approx. 9W/Meter, 5 meters length, total approx 45W.
Light source: RGB 5050 Top SMD LEDs
Beam angle 120 deg.
Pixel pitch（mm） P31.25mm
Pixel resolution（Dot/㎡） 1024
Printed circuit board thickness approx. 0.25mm
Operation Temperature -10℃-40℃
Storage Temperature -20℃-80℃
Life span: more than 50000hrs
Dimension: approx L5000mm (5M) x W14mm x T2.5mm The original PCB width is 12MM, For waterproof led strip, with the silicon, the width is around 14MM.
Color of PCB Background: Pls Choose,White,Black
Packaging:5 Meters Strips/reel in antistatic bag
Package include:

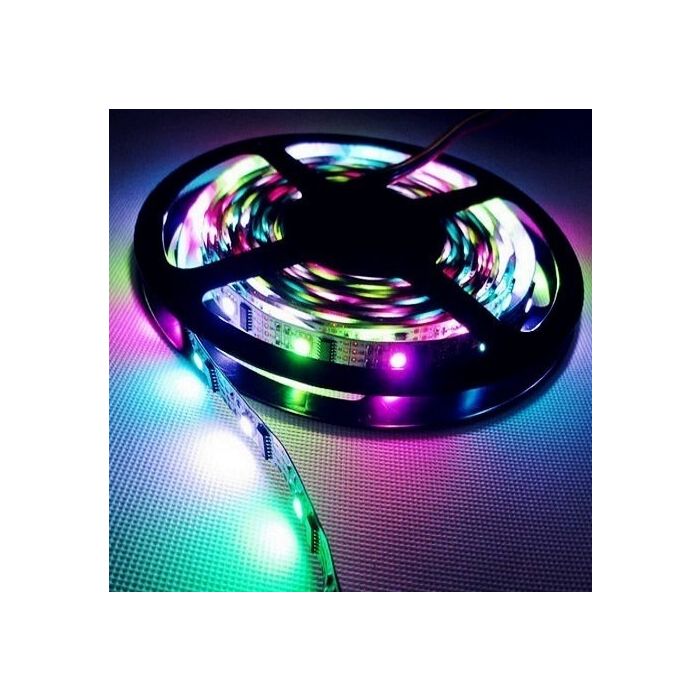

1 Roll of 5 Meters 5V WS2801 IC RGB 5050 Intelligent LED Strip Light 160ICs
non-waterproof
IP67 waterproof with silicon tube around the strip

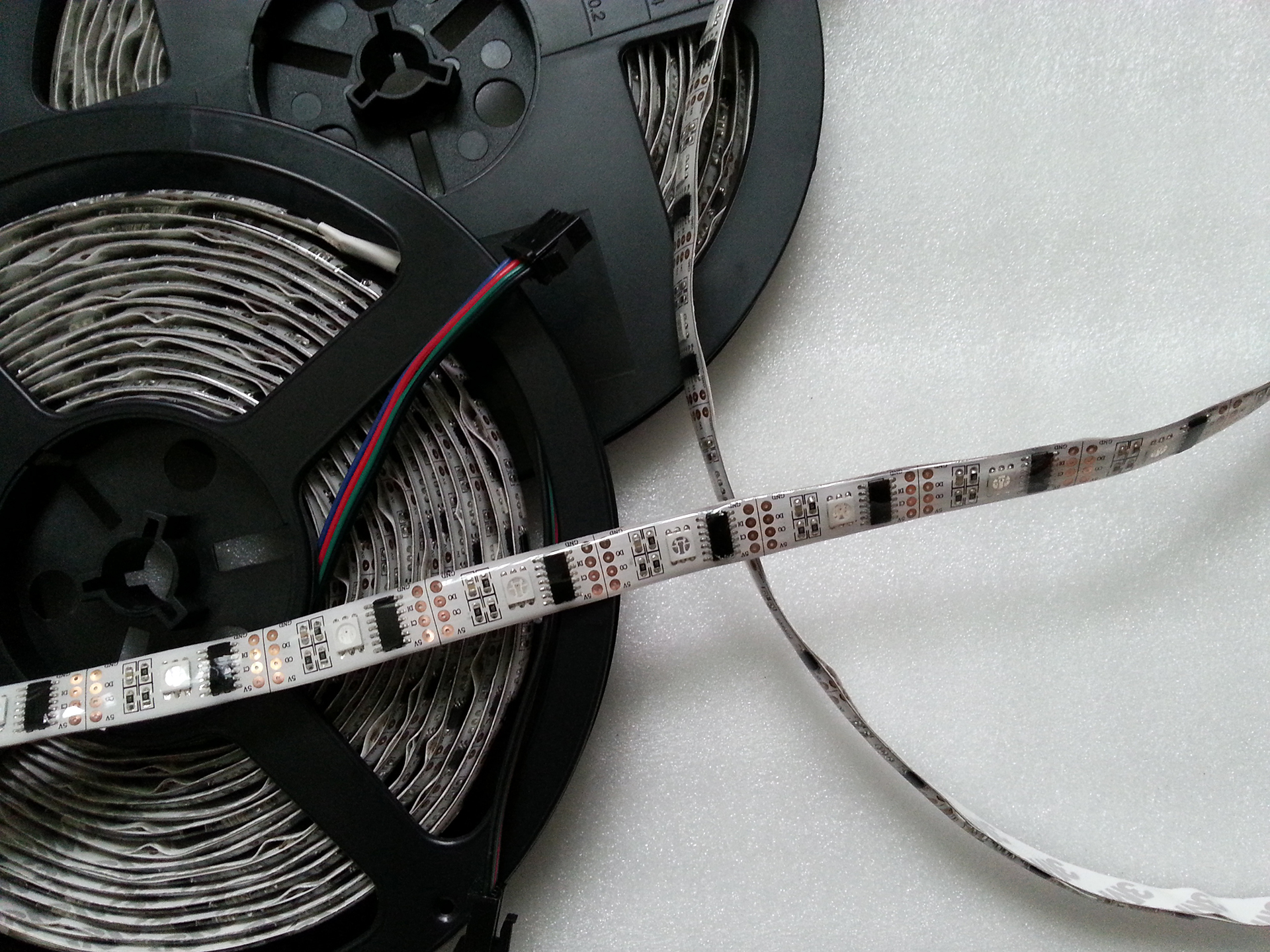

IP65 dripping glue waterproof
installation
CE and RoHS approved
